Functions and Applications of HW19710 Transmission Assembly
The HW19710 transmission assembly is a critical component in heavy-duty commercial vehicles, designed to optimize power delivery and adaptability under varying operational conditions. Its key functions and applications are as follows:
1. Speed and Torque Adjustment
• Multi-Gear Configuration: The HW19710 features10 forward gears and 2 reverse gears, allowing precise adaptation to load, terrain, and speed requirements.
• Example: In trucks, lower gears (1–3) provide high torque for heavy loads or steep inclines, while higher gears (7–10) enable efficient cruising at highway speeds.
• Rated Input Torque: Handles up to1900 N·mof input torque, ensuring robust performance under heavy loads.
2. Power Distribution and Transmission Efficiency
• Coaxial Layout: The coaxial design minimizes mechanical losses, improving fuel efficiency and reducing wear.
• Planetary Gear Mechanism: The auxiliary transmission box uses planetary gears for smooth gear shifts and load distribution, enhancing durability.
3. Load-Bearing Capacity and Durability
• Heavy-Duty Application: Designed for trucks with engine power ranging from336–420 hp, making it suitable for logistics, construction, and mining.
• Structural Integrity: The hardened tooth surface and robust casing withstand high-stress environments, reducing maintenance costs.
4. Adaptability to Diverse Vehicle Configurations
• Compatibility: Used in models such as theSinotruk HOWO, Shacman, FAW, and Foton, offering flexibility for manufacturers.
• Customization: Supports OEM-standard sizing and branding, enabling seamless integration into different vehicle platforms.
5. Cost-Effectiveness and Maintenance
• Long-Term Reliability: Reduces downtime through durable construction and precise gear shifting, lowering lifecycle costs.
• Warranty: Typically includes a1-year warranty, ensuring post-purchase support.
Key Specifications for HW19710 Transmission Assembly
Parameter Details
Model HW19710
Gear Configuration 10F + 2R (
Max Input Torque 1900 N·m
Rated Speed 2600 rpm
Shift Mechanism Manual
Weight 355 kg
Application Heavy-duty trucks, construction machinery
Industrial Applications
• Logistics and Transportation: Essential for long-haul trucks requiring reliable gear shifting under heavy loads.
• Construction and Mining: Used in dump trucks and excavators to handle rough terrain and high-torque demands.
The HW19710 transmission assembly combinesdurability, efficiency, and adaptability, making it a preferred choice for heavy-duty commercial vehicles. Its robust design and multi-gear configuration ensure optimal performance across diverse operating conditions, while its compatibility with leading truck brands enhances its market appeal.
|
|

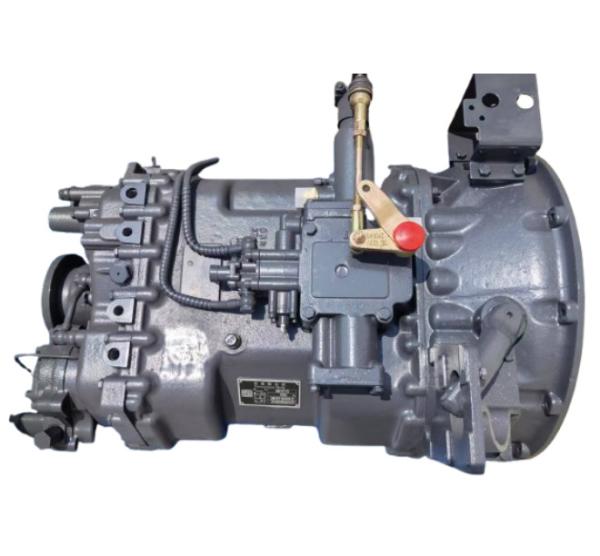

HOWO Tansmission Assy HW19710 Images
|
